Metal roofing system
Classification:
Curtain wall aluminum veneer
Key words:
Characteristics of metal roofing system

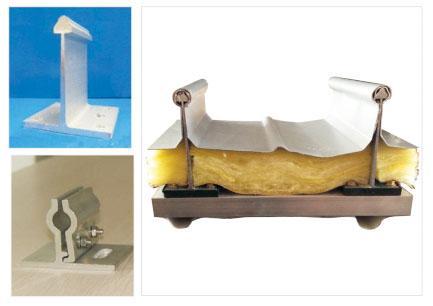

The metal roofing system is an enclosure system composed of cold-formed thin-walled steel and profiled metal roofing plates with heat insulation, sound insulation and waterproof lamp materials. It has the following characteristics:
1, metal roofing has the characteristics of light weight, strong durability and high economic performance.
2, metal roofing has excellent structural properties.
3, good waterproof performance;
4, The appearance is strong enough to meet the appearance needs of different kinds of buildings.
5, Installation is convenient and fast, and has strong adaptability to different areas, environments and buildings with different functional requirements.
6, It has excellent fire resistance.
7, metal roofing material is an ideal green building material.
8, roof system specifications: YX65-300/328/400/425/500
Direct plate:
Board width 300mm, 330mm, 400mm, 430mm, 500mm
Plate thickness 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm
Arc radius
Naturally curved arc (R>36m, the recommended radius is below 60m).
Machine bending arc (positive bending R>1.8m, reverse bending R>7.8m)
Fan plate:
Board width small end 200mm, big end 600mm
Plate thickness 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm
Arc radius
Naturally curved arc (R>36m, the recommended radius is below 60m).
Machine bending arc (positive bending R>5m, reverse bending R>10m)
