Product characteristics of bar buckle

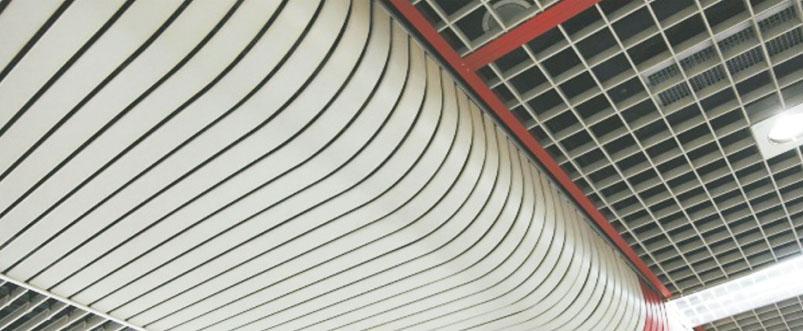

Strip buckle plate sequence is made of aluminum alloy plate, the overall consistency of the plate surface and line is strong, giving a comfortable, lively feeling, but also according to the design mind, arbitrarily arrange different widths, curves of the mixed installation of the slab, making the design changes, function, effect.
The characteristics and advantages of the strip buckle board: simple and lively, fire prevention, moisture-proof, clean, environmental protection, non-deformation and other functions. Can use the simplest combination of the most abundant sense of spatial hierarchy and three-dimensional, giving a concise and fresh feeling.

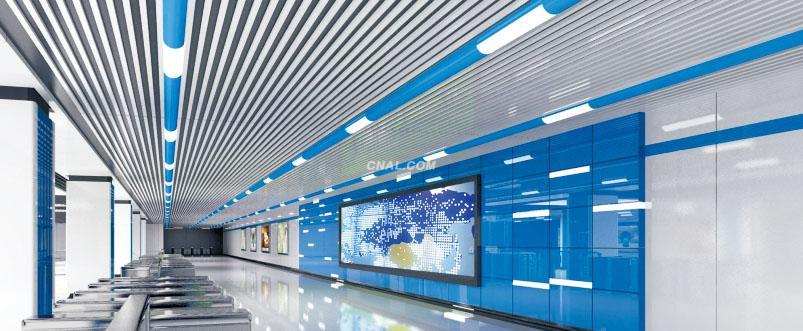

Home (such as toilets, kitchens, public toilets), shopping malls, offices, exhibition halls, station corridors, airports and other public places.
Embedded pinch plate installation instructions
A assembly method
1. Take the keel horizontal line in horizontal and vertical with hanger rod and spring code. The normal interval of keel is 80cm (the distance between hanger rods is generally 1.5m).
2, after hanging the keel horizontal line, press the elastic force of the buckle plate directly into the keel hook position.
3. Over-long connection of buckle plate, can be buckle plate need to be cut into 90 degrees neat, and cut about 5-10 cm buckle plate, slightly climbing molding, light pressure on the need to be placed in the board, using the buckle plate itself elastic, to achieve smooth connection effect, such as large area use, the B-type assembly method is recommended.
B assembly method
1. Take the suspender and the 38# light steel keel horizontally and vertically, divide each 38# light steel keel 1.2-1.5 meters, and then connect the special keel with the card code to the light steel keel at an interval of 80 cm (the suspender is generally 1.5 meters away). The B-type hoisting method can enhance the smoothness of large area use.
2, the installation and connection of the buckle plate and A type are universal.
